ESS E46 M3 G540 Supercharger System (Gen.4)

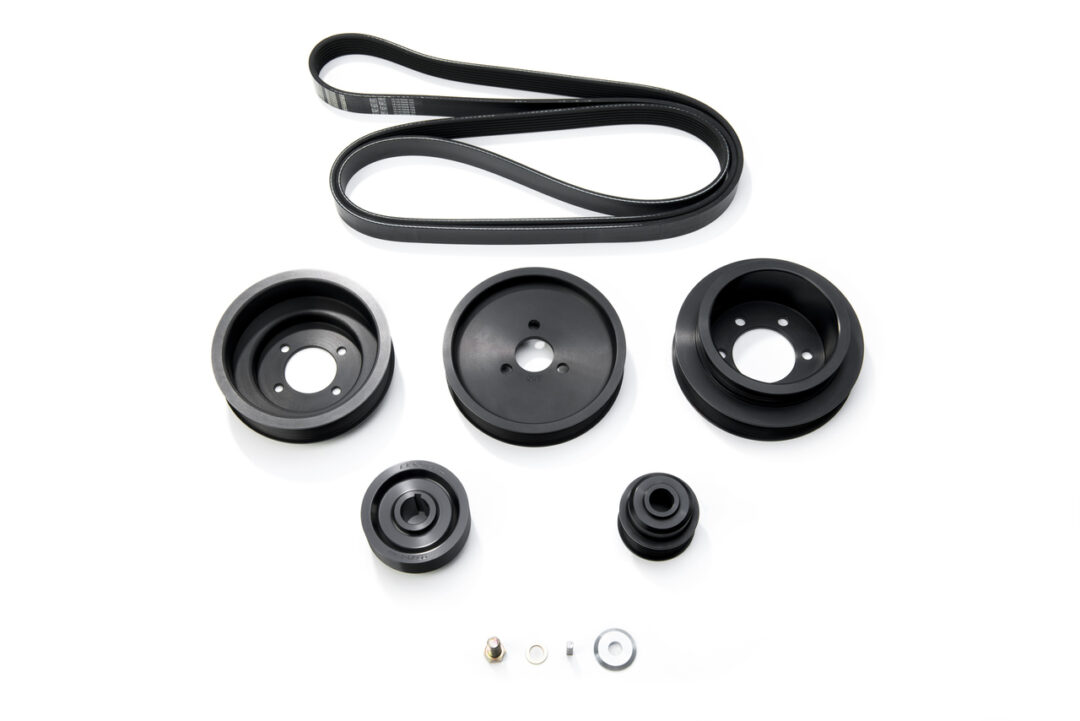

Description The intercooled ESS Tuning Gen.4 S54 G540 supercharger system is the culmination of over 20 years of S54 forced induction experience and over 1400 S54 supercharger systems sold worldwide to date. It produces 540hp and 350lb-ft of torque at 8-9psi of boost. Featuring the patented, highly efficient, extremely durable and light weight ESS G1 supercharger unit. This unit delivers quick boost, a very strong mid range and considerably less mechanical noise than earlier versions of our S54 systems on top of a ~10lbs savings in total system weight. The G540 comes with a completely new 6rib belt drive system with speed optimized power steering and water pump rotation for track duty, a 3.5″ front mount intercooler (FMIC) with a specially developed cast aluminum intake manifold assembly with an integrated high capacity bypass valve designed not only for optimum flow, but for minimal weight to not disrupt the iconic chassis balance of the M3. The G540 is a complete system with everything you need for correct installation. The supercharger system includes the ESS E-Flash OBD2 cable and specific ESS engine software that is perfectly calibrated for the G540 supercharged engine providing optimum ignition timing under all conditions, re-calibrated throttle control for quicker throttle response, re-calibrated VANOS control, and perfectly optimized fuel delivery under all conditions. The dyno limiter and top speed governors are also removed. E-Flash allows the end user to upload the supercharger ECU software from any PC running Windows 7 or newer, and includes full diagnostic and code clearing capability. Any future ESS software updates can be received by email and loaded directly to the car. The stock ECU software will be saved and can easily be restored in the future. Power delivery is 100% smooth and of OEM standard. The car behaves just like stock until you demand power, then the car completely transform providing brutal acceleration normally reserved for pure race cars. The ESS S54 Gen.4 G systems includes a significantly improved main bracket design with 60% stronger structural rigidity, an improved 3 roller beltdrive system with improved belt traction in severe racing conditions and also newly developed one piece silicone discharge hoses for SC to IC connections, as well as section 1 IC discharge to intake manifold silicone for improved flow and ease of installation. And like all ESS supercharger systems, the S54 Gen.4 G kits are tested and tuned for over 50,000 street and track miles on multiple vehicles throughout the world, 60 hours on our load dyno, full load top speed endurance testing on the German Autobahn, and final certification laps on the Nürburgring.  The system maintains all OBD-II functions and it is backed by a comprehensive 2 year, unlimited mileage warranty program.  This complete system is 100% bolt on and includes everything you need.  Installation takes 6-8 hours using normal hand tools and no irreversible modifications to the car are necessary.   System components: -ESS G1 internally lubricated high-efficiency supercharger unit. -6PK (6rib) belt drive system with G540 specific SC drive ratio. -Direct fit 3″ front mount intercooler system with casted end tanks for improved flow (FMIC). -Cast aluminum ESS intake manifold. -High capacity bypass-valve system. -Powder-coated, flow optimized mandrel bent tubing -One belt driven w/auto tension system. -CNC machined, hard anodized brackets. -CNC hard anodized crankshaft pulley. -CNC hard anodized water pump pulley (very important for proper water pump gear ratio) -Long life 6PK serpentine drive belt. -Oil breather assembly designed for boost. -5 layer super strength silicone hose throughout system. -ESS spec fuel pressure system -High capacity, direct replacement Siemens 630cc fuel injectors. -K&N cold air intake located inside front bumper. -ESS E-Flash reprogramming and diagnostic interface -Perfectly optimized, dyno tweaked MSS54/MSS54HP ECU software with removed top speed governor. -Detailed and illustrated installation manual. -2yr./unlimited mileage warranty. -100% maintenance free operation. Installation time: 6-8 hours The G540 requires the use of 91AKI/95RON and above fuel quality. The system is designed and calibrated for OEM Euro style exhaust headers. OEM US headers will also work well if the car does not see extensive track use. The system is capable of supporting considerably more boost/HP. G540 specs : Boost pressure: 8-9 PSI Horsepower: 540SAETorque: 350 ft/lbs Correction factor for drivetrain loss is 15% above RWHP as seen in dynograph (RWHP/0.85)Application intended for: E46 M3 from 2001-2006   Images for illustration purposes only
